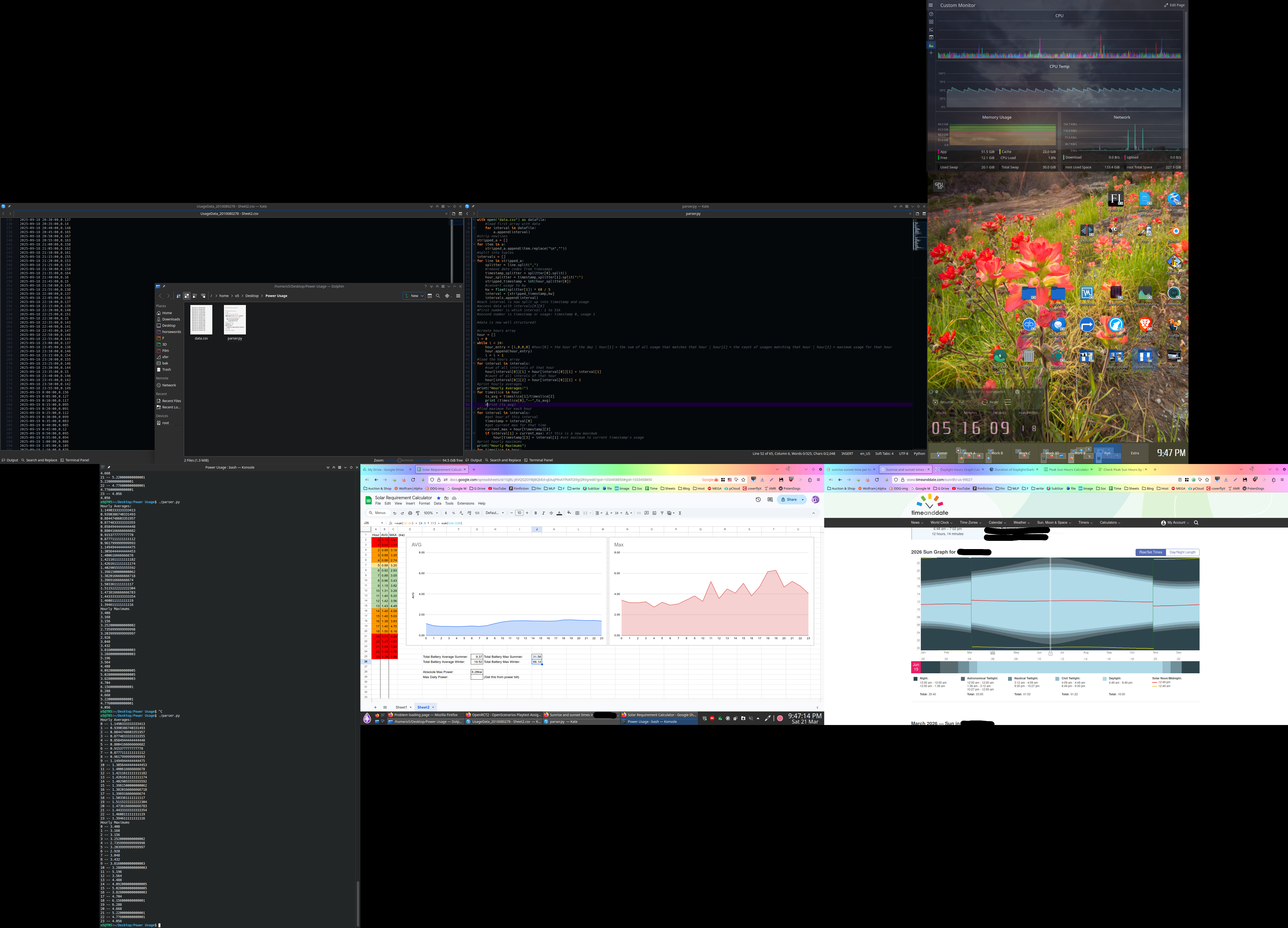

I’m planning to cut my grid connection and go full off-grid. Which raises the question of how much capacity I really need. And what you see here is me trying to answer that question based on ~51,000 5-minute data points of usage data my power company provided to me, complete with custom-made python script to parse all that data and pretty charts! (Yes, I have 6 monitors. And this kind of shows why.)

And what I’m really torn about now is how much battery capacity I need. Should I get enough to cover the absolute worst case scenario (~66kwh) or is something closer to my average overnight usage (~20kwh) acceptable?

Not the absolute end of the world if the batteries run dry and I need to temporarily supplement with generator backup, I suppose. Nobody is life-or-death depending on any electrical appliances here, and even on the coldest days, waiting a few minutes to go start a generator isn’t a huge deal.

But definitely would like a word from the wise about how much battery capacity I really need. And also how much solar panel wattage I need, I suppose.

  • OwOarchist@pawb.socialOP
    link
    fedilink
    English
    arrow-up
    0
    ·
    edit-2
    5 days ago

    Tesla is testing technology where you can plug your car in and have the car power the house overnight then charge in the the day when you have excess solar production. I would never suggest buying a Tesla but the technology sounds like a good idea and in 5-10 years it might be available across a wide range of cars.

    The Ford Lightning does that, too, without having to support the Muskrat. But a vehicle that new would be pretty far outside the budget right now.

    Anyway, you’ve got me a bit curious now about the possibility of finding an EV battery in a junkyard and maybe using that as solar battery storage. Though … those usually run at pretty high voltages. Finding both charge controllers and inverters capable of dealing with those voltages might be difficult and expensive enough to negate any possible cost savings on the battery itself. Plus, then I’d be kind of locked into that type of battery when the time eventually comes to replace it, since that high voltage equipment probably won’t easily convert to a more usual 48V system.

    Depending on climate (I keep saying that as I don’t want to be responsible for you freezing to death)

    Don’t worry, we’re hardy folk! Having parts of the house freeze over is actually kind of routine for us at this point. We only heat small rooms within the house, and through much trial and error, we’ve found freeze-resistant plumbing options. (We used to have basement floods every winter, but now we’ve converted the whole house to pex plumbing, which turns out to have good freeze resistance. Copper always developed cracks or pinhole leaks, steel would always burst a fitting, PVC would absolutely shatter, but pex has enough flex to it that it has been able to survive a few good freezing events without causing any leaks – just a temporary lack of water. And in those temporary freeze-ups, we have an outdoor frost-free faucet run directly off the supply line that always works, and we can fill from that for a day or two until the cold snap ends and the plumbing gets above freezing again.)

    And there’s always the backup generator, which will cost a fortune to run, but will prevent anybody freezing.

    Though it may worry you even more, I actually think I’m planning on putting that backup generator in the basement (with tightly sealed and double-wrapped exhaust pipe running outside, air intake routed from outside, a remote shutoff switch, and a dozen carbon monoxide alarms scattered around, of course!) But the advantage there (besides not needing to build and outdoor weatherproofing enclosure for it) is that most of the generator’s waste heat would then help heat the house, at least enough to keep the basement above freezing and keep most of the pipes from freezing. Since most of the times we’d need a generator are when it’s very cold, that could actually make it way more efficient, since most of its energy would be used for heating anyway.

    just that you need that water stored inside, and one day (whether next year or in 30 years) they will rust through and make a big mess!

    Don’t worry about that, they’re plastic drums. The biggest concern would be that they might at some point freeze and burst … but that would never happen if I fill them with an antifreeze solution. The real biggest concern is just how much space they would take up … and possibly how much weight they’d be adding to the floors.

    Inverters tend to only handle 10kWh production at a time (with short term spikes above that)

    Yeah, may end up having multiple charge controllers in addition to the inverter’s built-in solar charge controller(s).

    Personally, I’d prefer to have those systems be entirely separate in the first place, so each one can be sized according to need and each one can be independently replaced if it breaks. But it seems that most inverters capable of handling our ~6.2kw absolute peak usage already come as ‘all in one’ inverters with solar charge controllers built in … I guess I might as well use the built-in charge controller, at least for part of the solar array.

    It’s hard to imagine 2 people using more than that outside of very specific events

    Yeah. Honestly, I have no idea how we ever got up to 6.2kw that one time… Our average usage never even gets close to 2kw. We’d definitely have to be running the oven at full blast, probably and a couple stove burners, and possibly the microwave/tea kettle at the same time … and probably some other big loads to even get that high.

    But the nice thing about having all this data to look at is being able to see that those peak usages are very rare. Out of ~51,000 five minute data points, only 70 five minute segments had usage above 4kw, and never more than about 15 minutes in a row.

    Even if we changed absolutely nothing about our usage, if we built the system to be capable of providing 4kw reliably, we’d only need to use the generator ~6 hours per year.

    And, honestly, It just has to be a massive cooking task contributing to those absolute peak usage moments. Nothing else we have could possibly come close to using that much power. If we simply avoid using the stove/oven at night in the winter, that’s probably enough to drastically reduce our peak demand and significantly reduce our need for battery capacity.

    Right, I’ll find that solar generation data and send it through.

    Thanks!

    • Dave@lemmy.nz
      link
      fedilink
      arrow-up
      0
      ·
      4 days ago

      But a vehicle that new would be pretty far outside the budget right now.

      40kWh of house batteries is probably going to run you closer than you’d think to the price of one of these cars… unless you can find some second hand ones (all the same type so you can string them together).

      Anyway, you’ve got me a bit curious now about the possibility of finding an EV battery in a junkyard and maybe using that as solar battery storage. Though … those usually run at pretty high voltages.

      They often come in multiple cells, depending on your abilities you might be able to wire them up to keep the voltage low. One thing to consider is that your ability to monitor the battery’s charge level and your power usage, in my experience, came as part of the battery. If you’re going to be living off grid, it might be important to have that functionality which wouldn’t come with random ex-car battery cells.

      And there’s always the backup generator, which will cost a fortune to run, but will prevent anybody freezing.

      If you’re gonna burn stuff inside, maybe a (modern) fireplace would help? Cost to run depends a lot on where you can get wood from, but it doesn’t need power, they generally put out a lot of heat, and you can even get wet-back varieties to help with hot water heating. That would go a long way to getting you less reliant on solar generation in the winter months.

      Don’t worry about that, they’re plastic drums. The biggest concern would be that they might at some point freeze and burst … but that would never happen if I fill them with an antifreeze solution. The real biggest concern is just how much space they would take up … and possibly how much weight they’d be adding to the floors.

      Plastic cracks with age too! Especially with 200kg of water inside them for a long period. The weight on the floor could be a concern, water is very heavy.

      Yeah, may end up having multiple charge controllers in addition to the inverter’s built-in solar charge controller(s).

      Personally, I’d prefer to have those systems be entirely separate in the first place, so each one can be sized according to need and each one can be independently replaced if it breaks. But it seems that most inverters capable of handling our ~6.2kw absolute peak usage already come as ‘all in one’ inverters with solar charge controllers built in … I guess I might as well use the built-in charge controller, at least for part of the solar array.

      While we miss out on a bit of power when our generation is over 10kW, I don’t think it’s that much, and we have a 15kW system. Realistically making 10kWh over a big portion of the day is way more important than making 15kWh briefly in the middle of the day. You might need that time in winter though, depending on daylight hours. But personally I’d think more panels to get generation up over a long period would be more important than capturing the peak generation.

      Our solar company used this site for their estimates, https://www.opensolar.com/ which you might be able to sign up for and see estimates of what you’d need in your location.

      6.2kW isn’t actually that hard to hit. You might use that if you oven is heating up while you use the microwave. Well, maybe this is harder to hit if you have 120v power, but with out 240v power it’s pretty easy. I presume you’re talking kW (power load) not kWh (energy usage over time).

      Even if we changed absolutely nothing about our usage, if we built the system to be capable of providing 4kw reliably, we’d only need to use the generator ~6 hours per year.

      Your battery can likely handle the peak loads above this. I’d expect you to break out the generator only when batteries are running flat, not to handle peak loads. A battery will probably provide 10kW peak load or a bit above this. Your main issue will be if you don’t manage to charge your batteries during the day due to poor weather, then you need to run 2 (or 3) days on your batteries instead of 1.
